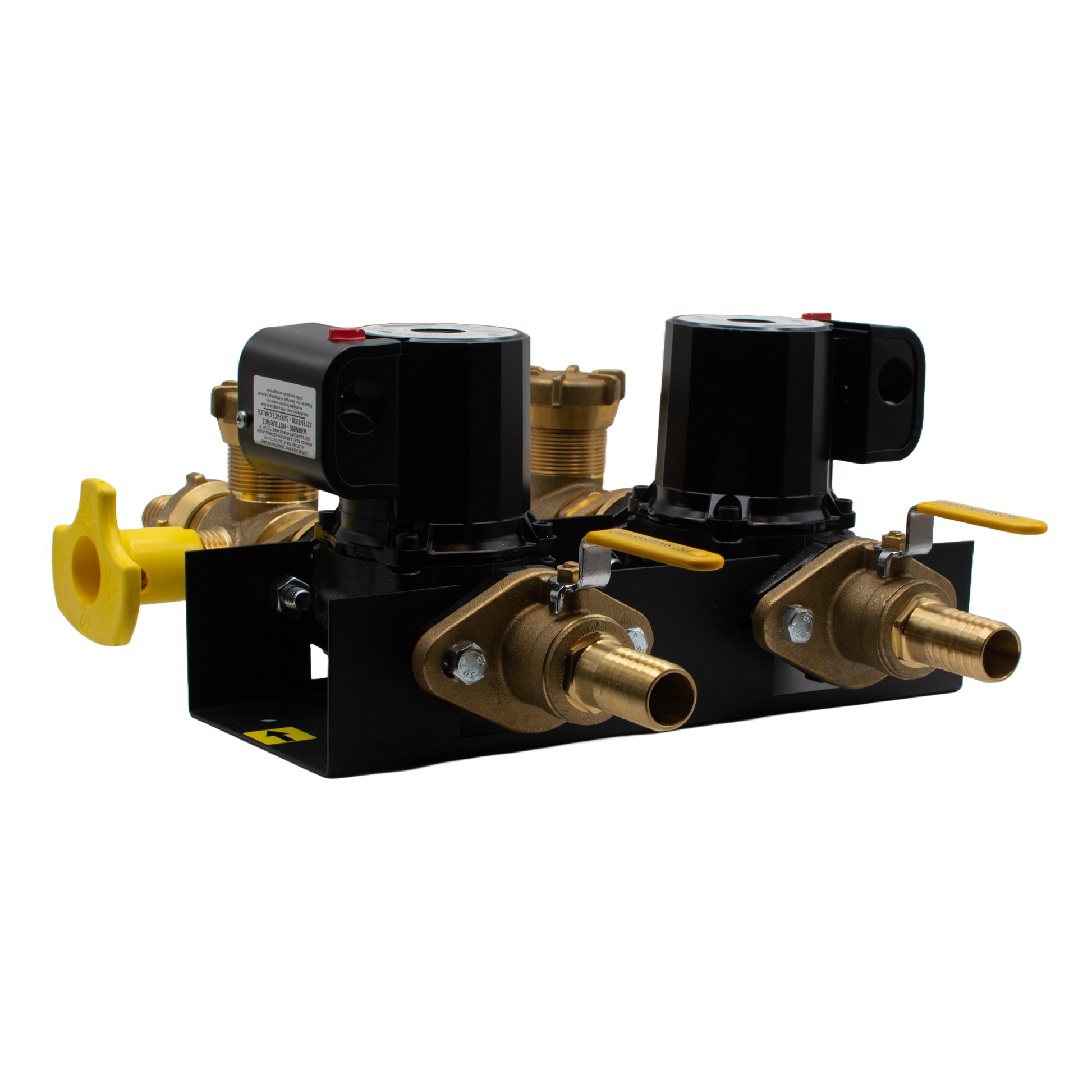

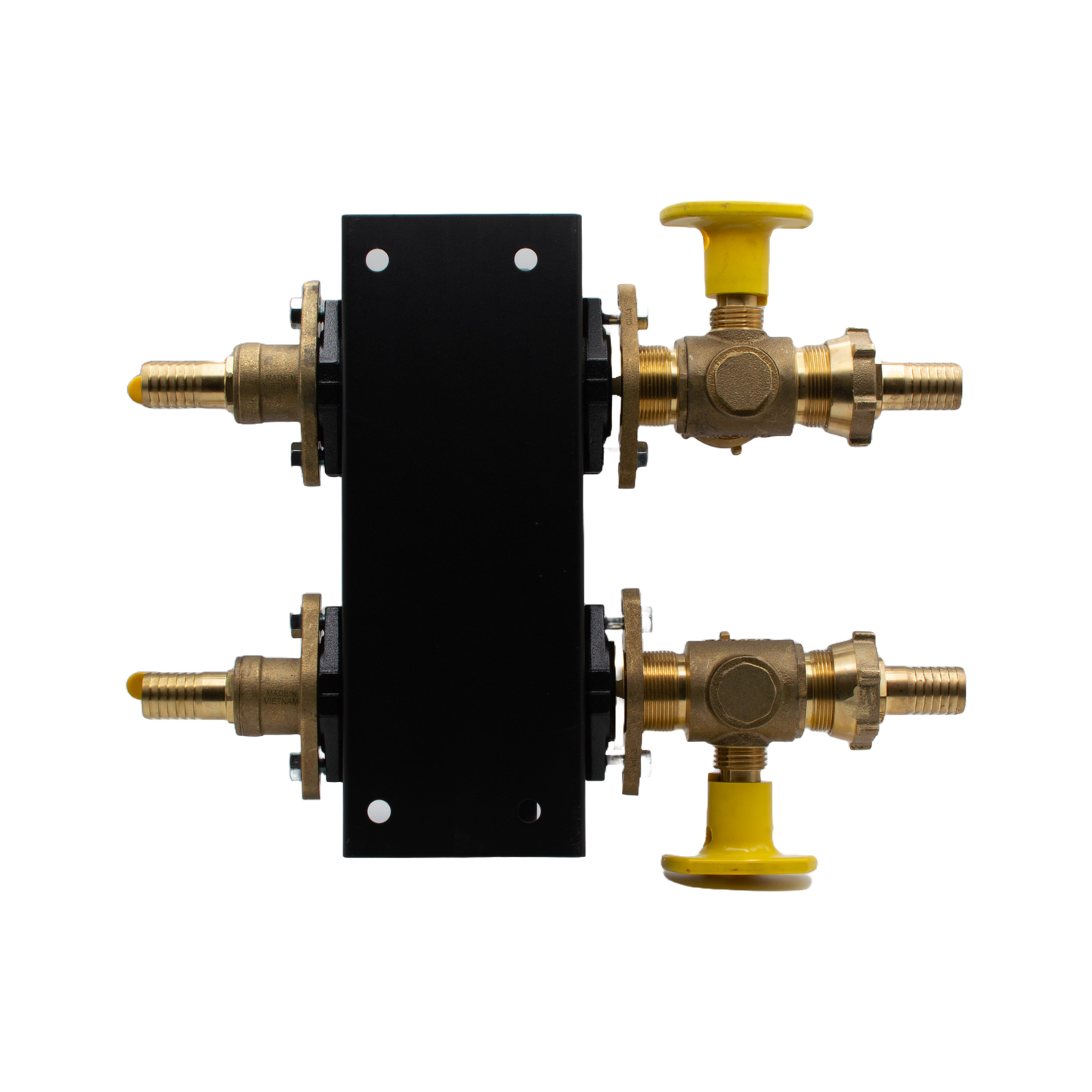

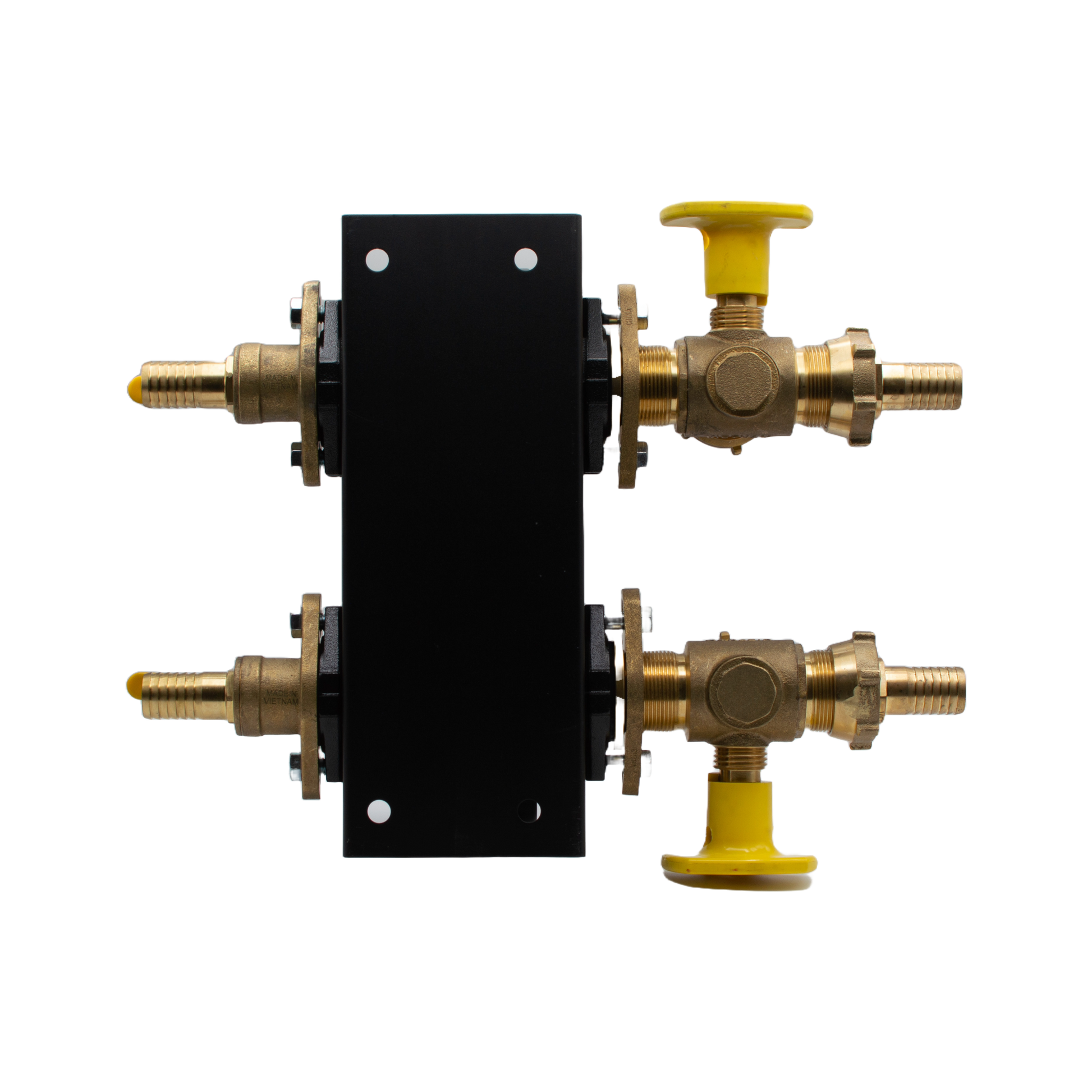

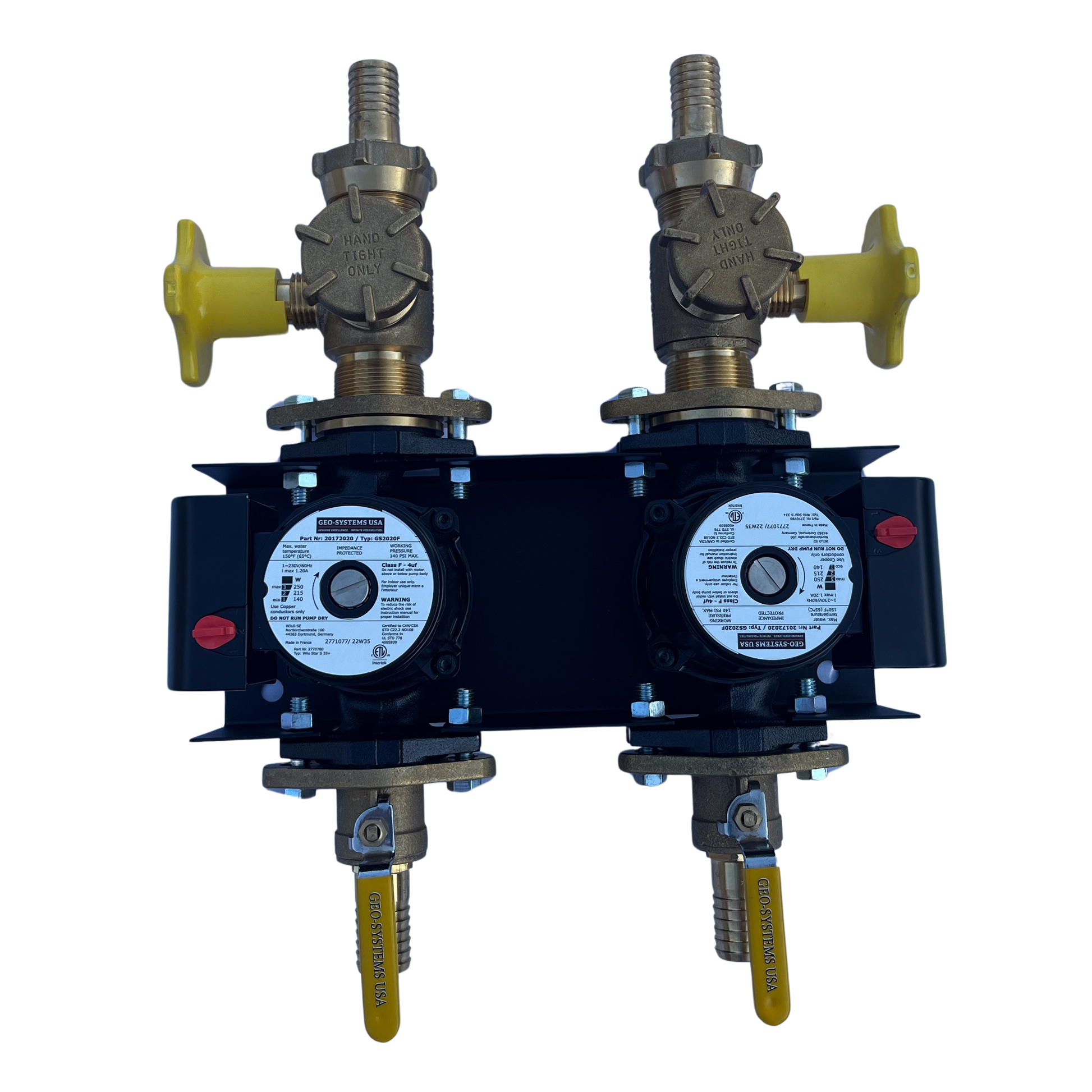

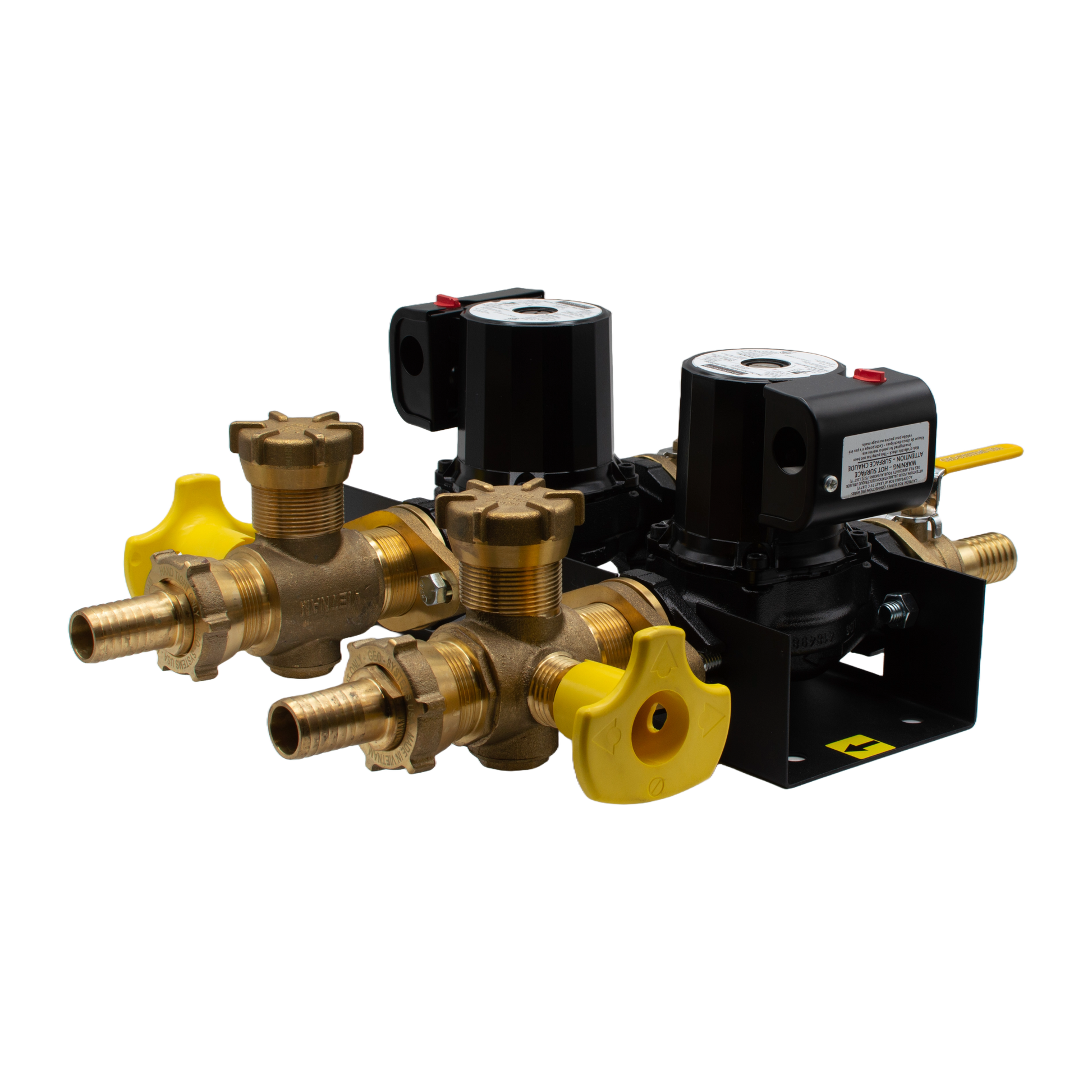

EACH FLOW CENTER WILL INCLUDE (2)GEO-SYSTEMS USA MODEL GS2020F CATAPHORESIS IRON BODY CENTRIFUGAL PUMPS WITH 1/6 HP, 1/60/230V ELECTRIC MOTORS, (2) 1" ISOLATION VALVES WITH 1" HOSE BARB CONNECTIONS, (2) 3-WAY BRASS BALL VALVES FOR FLUSHING AND PURGING OR PRESSURE AND TEMPERATURE CHECKING. ALL ASSEMBLED ON A POWDER COAT STEEL BRACKET.
THESE FLOW CENTERS CAN BE MADE IN MANY DIFFERENT CONFIGURATIONS TO MEET THE REQUIREMENTS OF EACH HEAT PUMP.
WITH DECADES OF SERVICE TO THE GEOTHERMAL MARKET THESE FLOW CENTERS HAVE A WONDERFUL TRACK RECORD OF GETTING THE JOB DONE EFFICIENTLY IN BOTH RESIDENTIAL AND COMMERCIAL APPLICATIONS.
